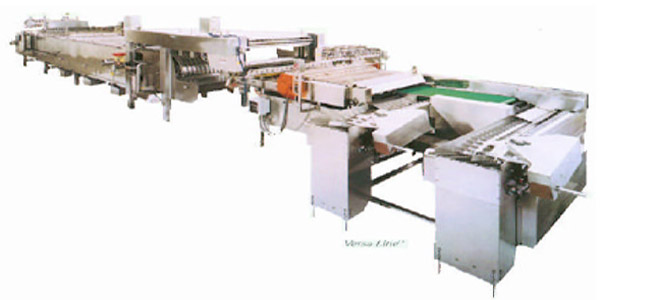

WCBIC VERSALINE

Flexible and versatile molded stick production system

The heart of the innovative Versaline Cascade flow systems Efficient heat exchange is the key to freezing and defrosting

Features:

1. Flexible. Produces widest range of product sizes, shapes and combinations
2. Versatile. Easy change-over of product styles, flavors and mold shapes
3. Highly efficient
4. Sanitary design
5. Low maintenance
6. Fast and easy cleaning
7. Reduced labor requirement

The heart of the innovative Versaline
Cascade flow systems
-- Efficient heat exchange is the key to freezing and defrosting

The Versaline offers unique, patented systems for freezing and defrosting.
CASCADE FREEZING SYSTEM applies the cold brine at the top of the mold, where the
product is the thickest, and brine then flows down its exterior. This function is both fast
and uniform, resulting in a freezing rate increase of up to 35%.
CASCADE DEFROST SYSTEM is more efficient than spray defrost or dip pot systems,
permitting "drier" extraction thought lower, energy saving, defrost temperatures.
Molds are transported straight through the cascade freezing and defrost systems, thus
eliminating the need for gradual entry and exit.
Resistance to forward motion and mold buoyancy, caused by upward brine circulating
pressure, are eliminated with the cascade principle, and less driving force is required.

Design-On-Surface (DOS™)

- The patented Design-On-Surface (DOS™) system, an optional accessory for the Versaline.
With DOS, molded frozen manufacturers can:

1. Creates exciting colors, shapes or combination stick
confections.
2. Creates no-freeze zones, as many and as long as needed
for product design.
3.Creates two distinct product shapes in the same mold, with
or without each appearing on the frozen confection's exterior surface.
4.Uses existing or new molds.
5.Eliminates the need for intermediate extraction and reinsertion mechanisms, or the need for exceptionally long
freezing sections.
6.Add or remove the DOS system at any time without
machine modification.
