Automatic Non-Contact Laser Punch Inspection System

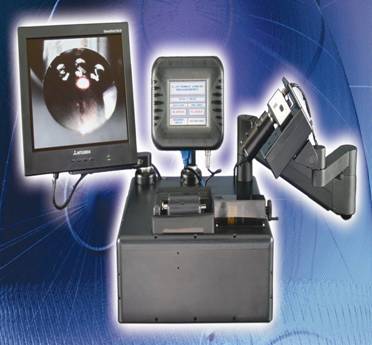

The combination laser measurement and vision system automatically measures the critical dimensions of a punch: working length, cup depth and overall length. Plus, it is fully integrated with the TM2. The vision system captures digital images of the punch and stores them with the punch measurements in the TM2 database.

Features：

1.Standard "B" and "D" Tooling
2.IMA Comprima Tooling
3.Capsule Filler Tamping Pins
3.Multi-tip tooling
4.Efficient 1-step measurements
5.Non-contact measuring
6.Laser technology
7.Real-time punch adjustments
8.few moving parts
9.video camera
